Intimidator Beam 355 IRC is a powerful and feature-packed moving head beam fitted with a 100W LED. Easily generate complex looks using the fixed gobo wheel that includes a unique animation effect to create additional dramatic looks. A rotating 3-facet prism splits the beam to cover larger areas. The motorized frost filter converts the beam to a wash. The onboard full-color display is IRC-6 compatible and features totem mode and onboard memory for storing a scene. Intimidator Beam 355 IRC has powerCON®-compatible power input/output connections for power linking.
Highlights
Feature-packed moving head beam fitted with a 100W LED
Motorized frost filter converts the beam to a wash
Easily generate complex looks using the fixed gobo wheel plus animation effect
Split the beam and cover larger areas with the rotating 3-facet prism
Full-color display with IRC-6 compatibility, totem mode and onboard memory for storing a scene
Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
powerCON®-compatible power input/output connections for power linking
Fits best in the INTIMROADCASES35X flight case
WHAT'S INCLUDED
- Intimidator Beam 355 IRC
- Power cord
- Hanging bracket
- Warranty card
- Quick Reference Guide

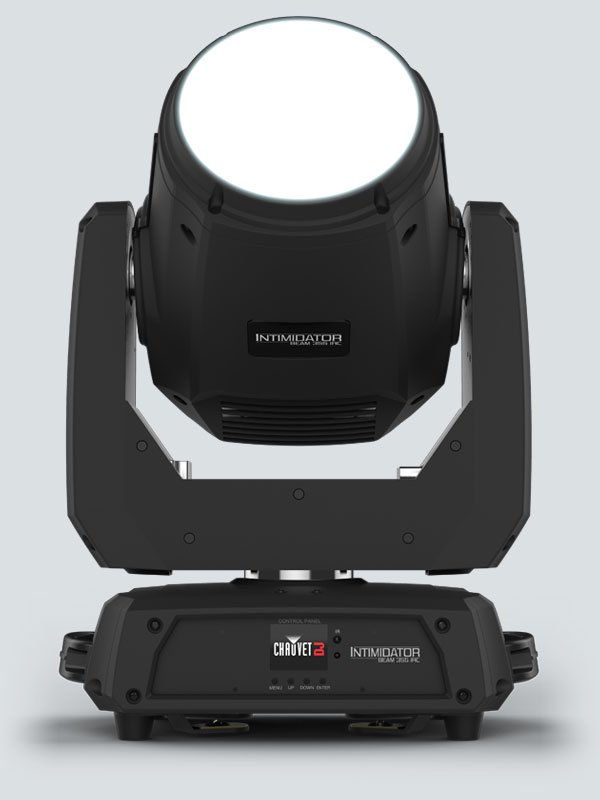

Chauvet Intimidator Beam 355 IRC
Specifications
- DMX Channels: 8 or 14
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/270°, 180°, 90° tilt
- Colors: 8 + white, split colors, continuous scroll at variable speeds
- Gobos: 5 + open, animation effect, continuous scroll at variable speeds
- Light Source: 1 LED (white) 100 W, (27 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- PWM Frequency: 1.8 kHz [flicker free]
- Beam Angle: 3°
- Illuminance: 262,800 lux @ 2 m
6,860 lux @ 5 m - Power Linking: 5 units @ 120 V; 9 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 163 W, 1.5 A @ 120 V, 60 Hz
157 W, 0.8 A @ 230 V, 50 Hz - Weight: 25.4 lb (11.6 kg)
- Size: 12.7 x 8.7 x 18.9 in (322 x 220 x 480 mm)
- Approvals: CE, MET
- Optional Controllers: IRC - 6
- Prism: 3-facet round, bidirectional rotation at variable speeds
