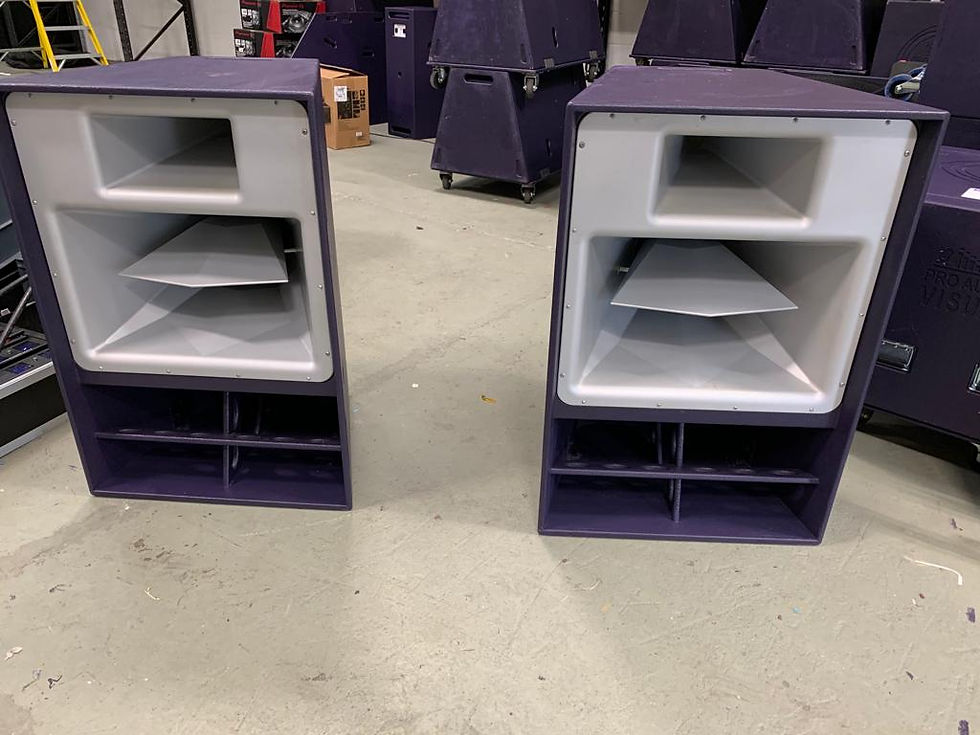

Pair of Funktion One EVO7E loudspeakers available with optional wheel boards (additional charges apply). The speakers are in perfect working order and in truly excellent condition.
Manufacturers Description
The Evolution 7E is a very high intensity loudspeaker and is incredibly compact for its output performance. The Evo 7E is fully horn-loaded with 15” mid-bass, 10” Funktion One signature mid-range and a 1.4” compression driver. The Evolution 7E has 40 degree nominal horizontal dispersion and physically arrays at 30 degrees, three wide giving smooth coverage to 100 degrees, suitable for crowd sizes of around 2,500 people.
Perfect for both Live and Dance use, Evo7E systems offer state-of-the-art Funktion One sound quality.
We recommend their use with F121, F221 or BR221 bass enclosures.
Features:
- Fully horn loaded for high efficiency
- Three-way
- Funktion One designed drivers
- Low weight Neodymium Magnets throughout
- Fitted with M10 flypoints
- Optional Wheelboard
- Optional sturdy grille for discrete appearance
- Evo7EH and Evo7SH mid-high versions also available
Used (Pair) Funktion One EVO7E Loudspeakers (Excellent Condition)
Driver
Operating
Band
Sensitivity
(1W at 1m)
Power
(rms)*
Nominal
Impedance
15" 50/80 - 200Hz 103dB 400W 8Ω 10" 200 - 4kHz 108dB 250W 16Ω 1.4" 4kHz - up 109dB 75W 32Ω *AES rated
Frequency Response ± 3dB: 55Hz - 20kHz Weight (without wheelboard): 61kg (134lbs) Nominal Dispersion: 40° Horizontal x 20° Vertical Connectors: 2 x Speakon NL8
or EP6 option
